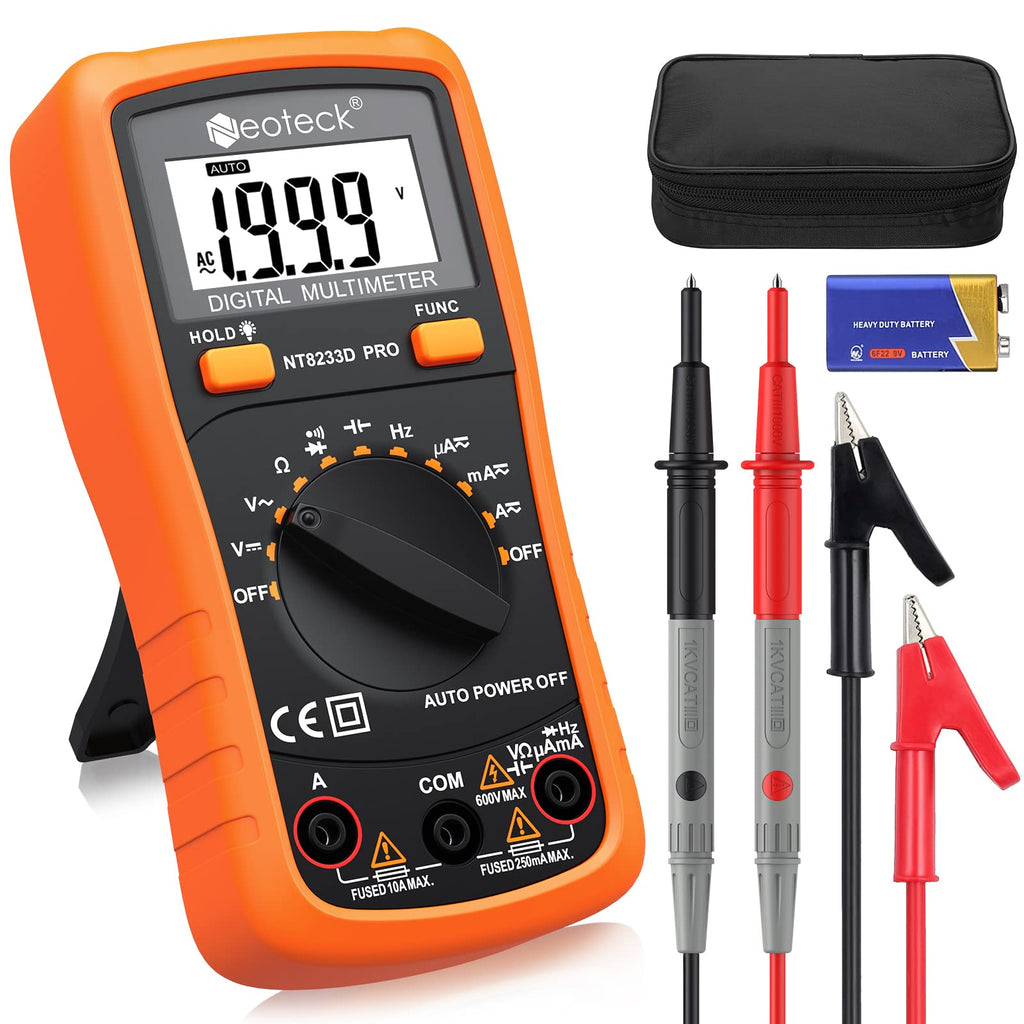

Neoteck Auto Ranging Digital Multimeter AC/DC Voltage Current Ohm Capacitance Frequency Diode Transistor Audible Continuity, Multi Tester with Backlit LCD
Sale price
$23.99
Regular price
$30.99
Brand: Neoteck
Color: Orange
Features:
- 【2000 Counts 8233D PRO Pocket Digital Multimeter】 Wide Application: It Can Accurately Measure AC/DC Current Voltage, Resistance, Capacitance (4-2000uF), Frequency (1kHz-200kHz), Continuity
- 【Included 9 Volt Battery】The Compartment Lid at the Back is Secured by One Cross Head Screw, Not Difficult to Remove at All; Also, Included Pair Test leads and Pair Banana Plug to Alligator Clip Cable
- 【CE Rated Digital Mulimeter with Over Load Protection】 Designed to Safely and Accurately Troubleshoot a Variety of Automotive and Household Electrical
- 【Large Backlit LCD Display】 Auto Polarity Display, Easy to Read Large Backlit LCD Display, Back-light Makes a Real Difference in Low Light Areas
- 【Nice Protective Orange Shell with Stand Built】 The Case with Our Multimeter is Some Kind of Non Slip, Slightly Soft Plastic that Will Help with Drop Protection, The Stand Places the Device at a 45 Degree Angle and Makes the Screen Easy to See Hands Free
Binding: Tools & Home Improvement
model number: NTK017-US
Part Number: NTK017
Details:
All Neoteck Product Comes With 18 Months US Base Warranty
Overview:
Neoteck 8233D PRO multimeter using the word high 15mm LCD display with backlight, even in low light places can clearly read the display value. Is a high performance, high reliability, compact handheld 3 1/2 digit digital multimeter auto range. This Meter is designed to meet IEC 61010-1 & CAT II 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop.
Feature:
- Over load protection: Used the PTC protection circuit for Resistance, frequency measurement

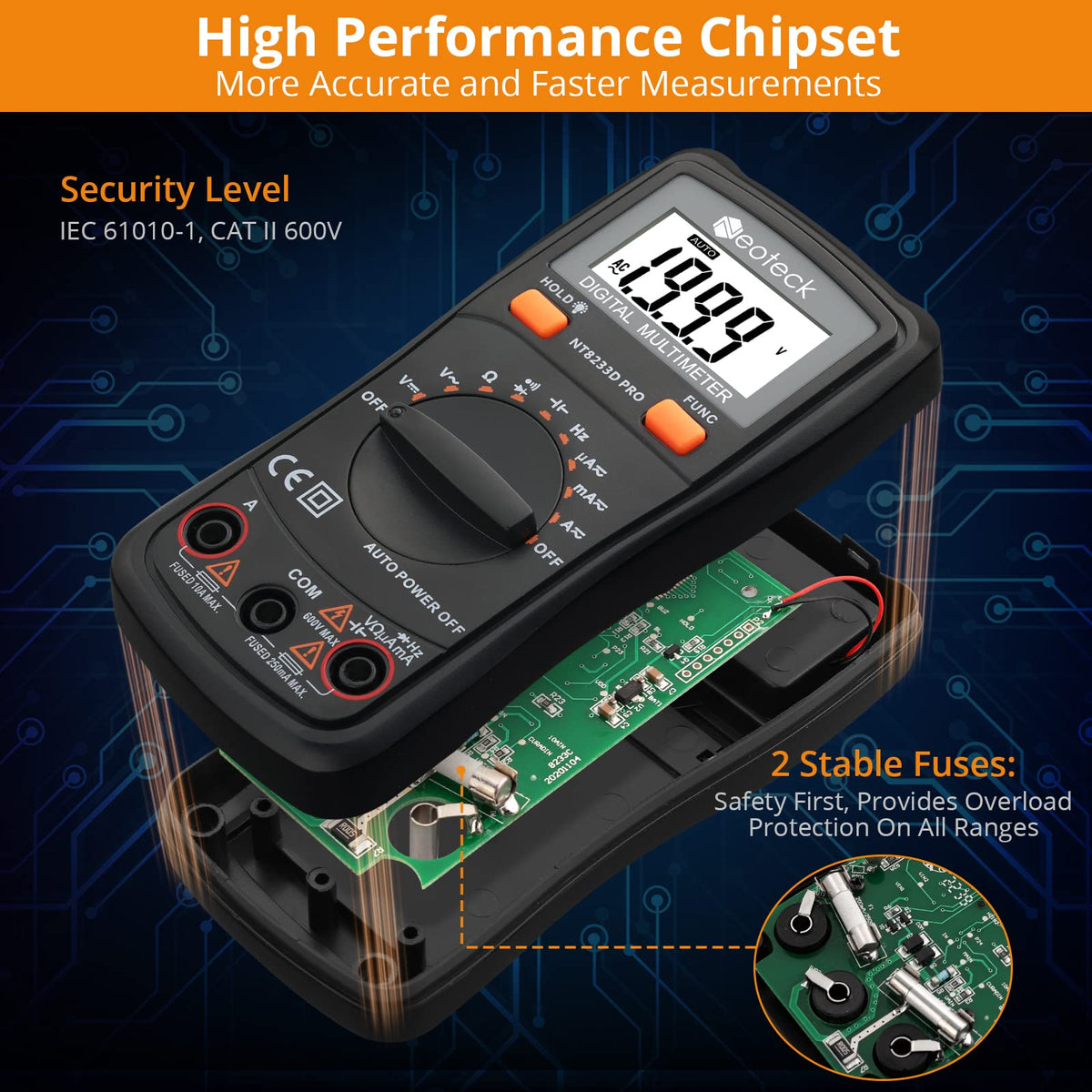

- Double Current Fuses. High quality ,More Safety. Meet For Euro Standard.Safety Class: IEC 61010-1, CAT II 600V

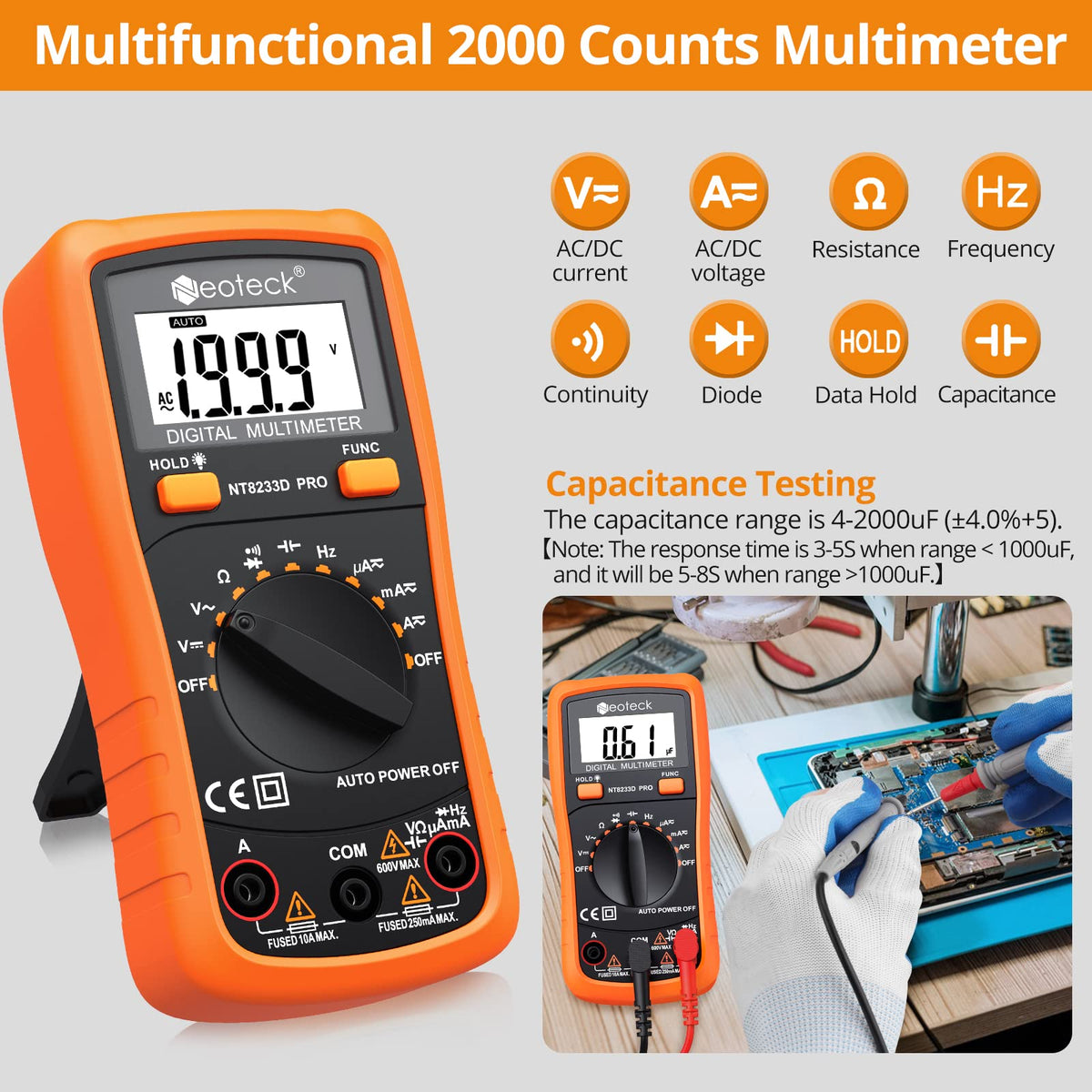

- 2000μF Capacitance and 200KHz Frequency measurement
- Make Sound of Continuity test more Loudly
- Back Light
- DATA HOLD function
- Low battery indication
- Auto Power-OFF
- Diode test
Specification:
- DC Voltage: 200mV/2V/20V/200V+-(0.5%+2) 600V+-(0.8%+2)
- AC Voltage: 2V/20V/200V+-(0.9%+3) 600V+-(1.2%+3)
- DC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+3)
- AC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+4)
- Resistance: 200ohm/2Kohm/20Kohm/200Kohm+-(0.8%+2) 2Mohm/20Mohm+-(1.0%+2)
- Frequency: 200kHz
- Capacitance:2000uF
- Diode check: Resolution: 0.001V, Will display the forward drop voltage
- Continuity check: If measured resistance less than 100Ω, will buzzer is sounded. Sound loudly ,Easliy to hear
- Power Supply: 9V Battery(6F22) (include)

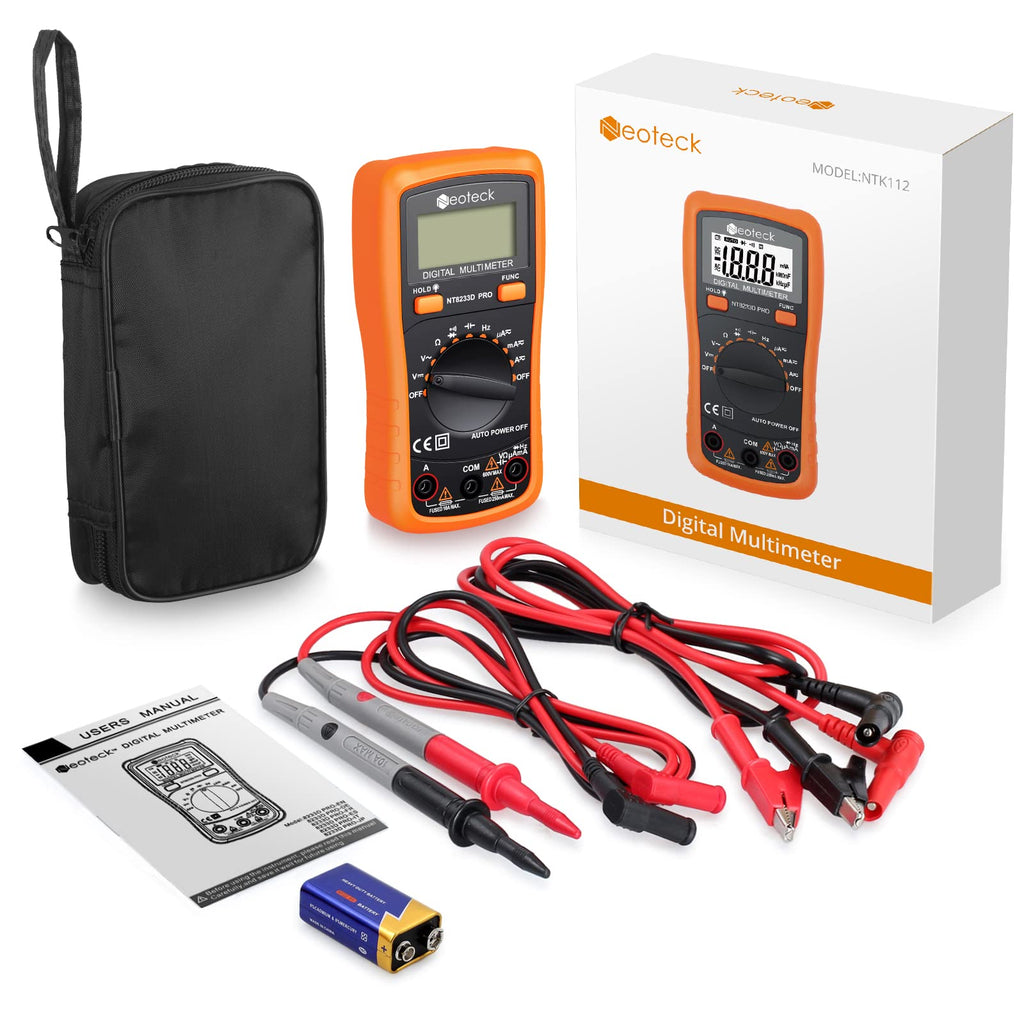

Package Include:
- 1 x Neoteck 8233D Pro Multimeter
- 2 x Test Leads
- 2 x Banana Plug to Alligator Clip Cable
- 1 x User Manual
- 1 x Box
EAN: 5060492196266
Package Dimensions: 7.1 x 5.9 x 1.9 inches
