Breadboard Module BB-1 For Prototyping Guitar Pedals

The Ultimate Breadboarding Tool for Musicians and DIYers

No more alligator clips, battery clips, or wiring up jacks every time you want to breadboard a circuit. Plug in your guitar, run the output to your amp, pick your voltage, and start building.

Every time you breadboard a guitar pedal circuit, you have to build the same setup before you hear a single note: jacks to get your guitar signal onto the breadboard and back out to your amp, a way to get power onto the board, and a switch so you can compare your circuit to your dry signal. It takes time, it eats up space on your breadboard, and when something sounds wrong, you can't tell if it's your circuit or your setup wiring.

The BB-1 guitar pedal breadboard module does all of that for you, so the only thing you build is the circuit you actually want to hear.

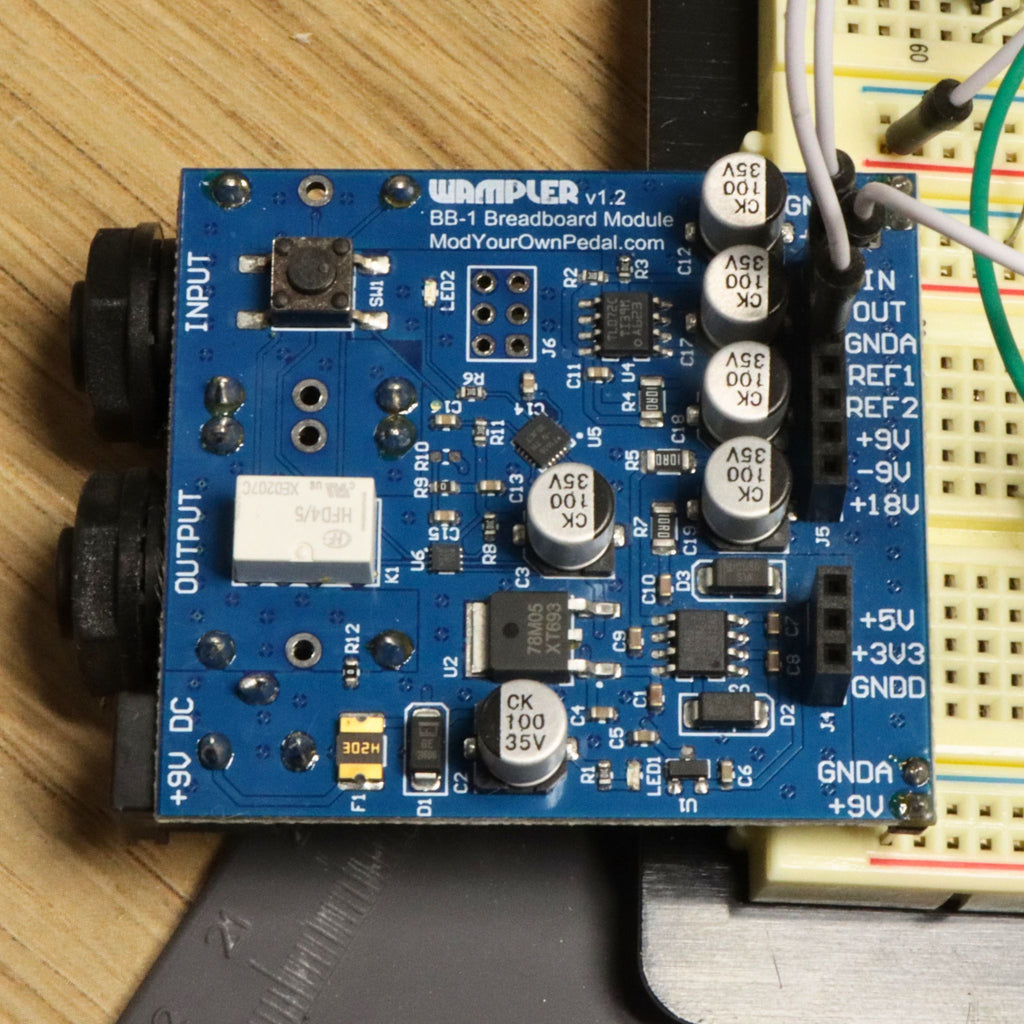

• Guitar in, amp out. 1/4" input and output jacks get your guitar signal onto the breadboard and back out to your amp. No alligator clips, no loose wires.

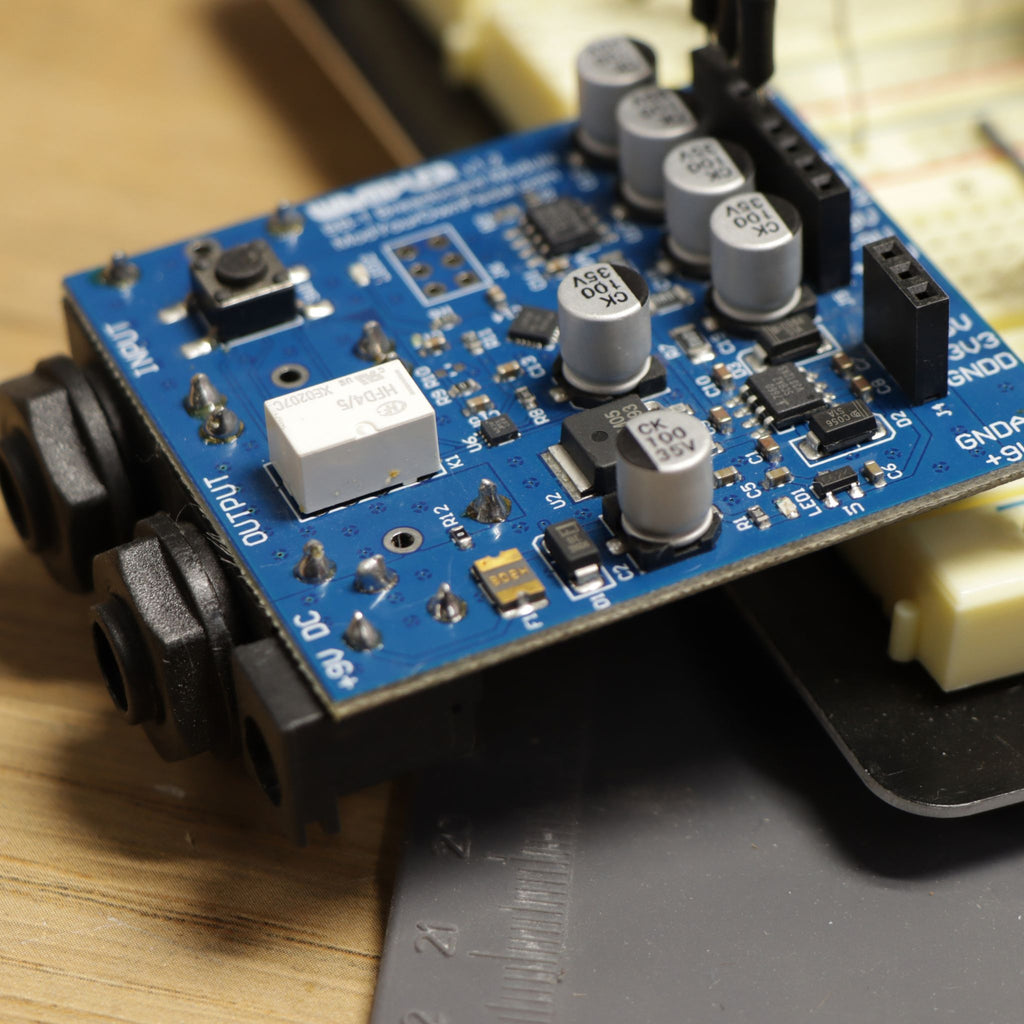

• True bypass on and off. The button uses relay true bypass, so you can flip between your circuit and your dry guitar and hear exactly what your circuit is doing.

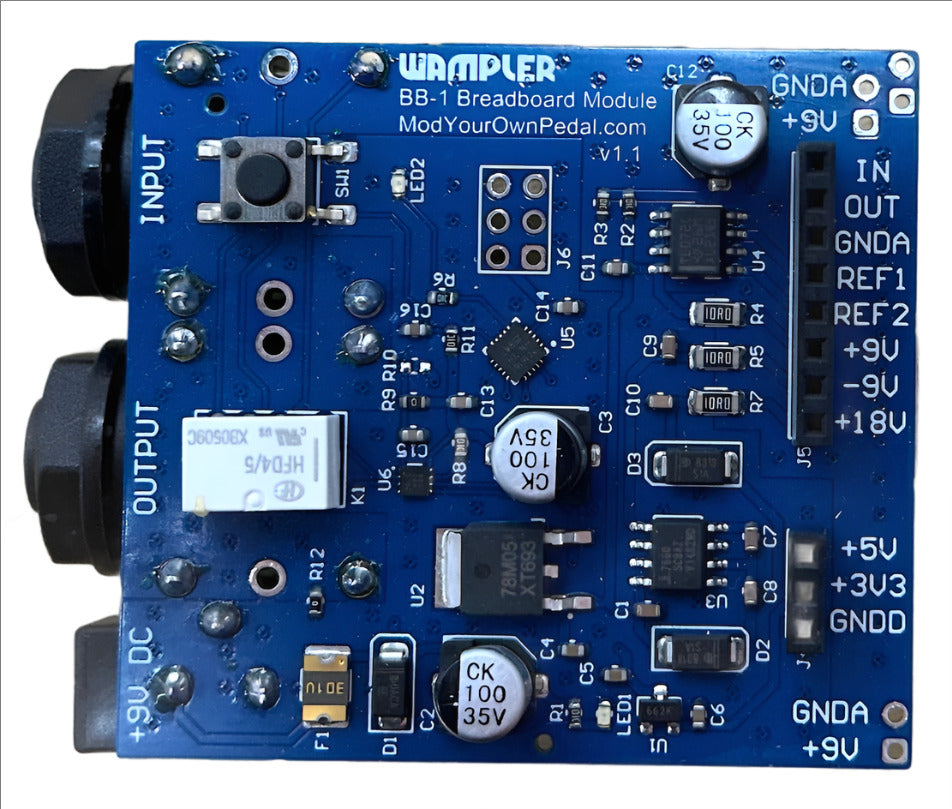

• The power you need, analog or digital. +9, -9, +18, +5, and +3.3 volts, plus a 4.5 volt reference (buffered and unbuffered) and separate analog and digital grounds. Building a fuzz or a digital effect, the power is already there. No battery clip, no building a power supply first.
• Saves time and space. None of this gets built on your breadboard, so you skip the setup every time and keep the room for your circuit.
• Fits any breadboard.

"I highly recommend getting the Breadboard Module, it will make your life a LOT easier!" (GuitarPedalCourse.com student review)

Our goal is to help you with everything necessary to do all the projects found in our online courses at https://www.guitarpedalcourse.com/collections
